The quality found in PVA metal products and parts has a lot
to do with the precision fabrication technology from which they are produced.
As well, our company’s managers and employees rely on a state-of-the-art manufacturing ERP software system to ensure that you get your products on-time and made to spec.

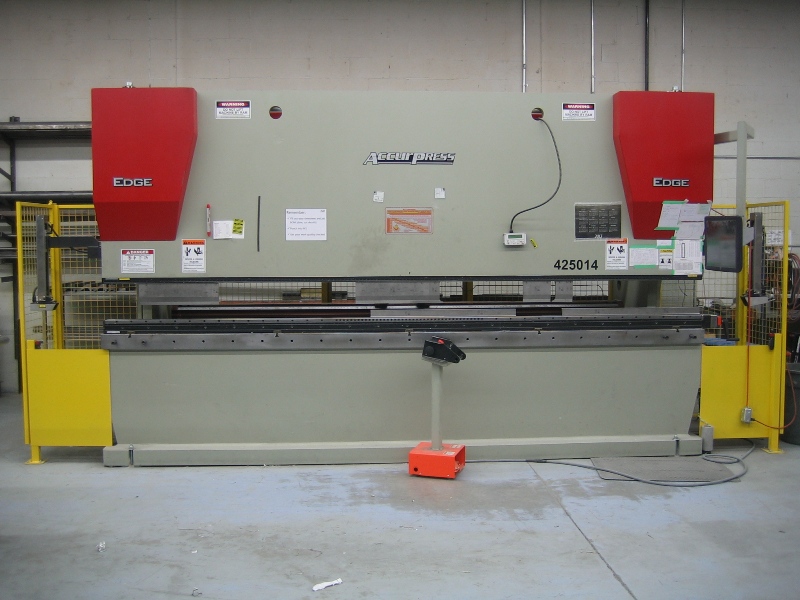

Tonnage:
250 US Ton
Key Dimensions:
14' with 12' between frame
18" Ram Open Height
10" Ram Stroke
16" Throat Depth
Backguage:
CNC, 6-axis (y1, Y2, X, R, Z1, Z2)
Controller:
Touch-screen
Accuracy:
Y1, Y2 0.0004" Repeatability
Dies:
Wila precision dies & crowning
Safety:
Lasersafe and full guarding
Cutting Area:
6'-0" x 12'-0"
Min. Thickness:
Shim Stock
Max. Thickness:
10", but varies by material
Cutting Heads:
2
Accuracy:
Linear per axis ±0.003”
Repeatability ±0.001”
Pump:
60 hp, 60,000 psi
Water Filtration:
Closed-loop system
1/4" mild steel capacity x 12' long, hydraulic, adjustable blade gap & rake
1/4" mild steel capacity, 50,000 psi
10' long x 4' wide, up/down adjustability
welders (TIG, MIG, spot, stud) & fume extractors, H-Frame Hydraulic Press, sanders, rollers, drill presses, cold saw, notcher, power and air tools
